Heat Seal Adhesives
Coat now, activate later — lidding, blister, converting. Call for a match to stock and seal temp.
Heat seal adhesive is coated on paper, film, nonwoven, or foil and dried. The bond forms later, when heat reactivates it. In-line or offline.
We make hot melt heat seals, heat seal films and tapes, water-based heat seal, and solvent-based heat seal coatings for food packaging, flexible packaging, paper converting, yogurt lidding, blister packs, and credit-card lamination. Apply by knife-over-roll, reverse roll, nip, gravure, brush, spray, or roller. We custom formulate for viscosity, solids, non-blocking, clarity, and seal temperature.
Stock water-based heat seal
| Product number | Chemistry | Function | Substrate / end use | Use |
|---|---|---|---|---|
| 8215 | Water-based | Heat seal, low-heat reseal | PET, foils | Low-heat reseal, PET/foils. |
| 8240 | Water-based | Heat seal, non-blocking | Food packaging | Food packaging, non-blocking. |
| 8300 | Water-based | Heat seal | Yogurt lidding | Yogurt lidding. |
| 8347 | Water-based | Flexible heat seal | Call for a match to your stock | Flexible, ~1500 cps. |
| 8362 | Water-based | Heat seal, extrusion laminating | Polyester films | Polyester films, extrusion laminating. |
| 9169-HS | Water-based emulsion | Heat seal | Paper packaging | Typically 2.4 lbf/in bond on recycled paper to paper. Water-based heat seal for paper packaging. Passed independent lab recyclability testing in tested paper structures. Results depend on your full structure, so test it on your own line before use. |
Stock acrylic emulsions (examples)
#7-8258, HS410 (EVA heat seal film), #7-26387, #7-3005, #7-3028, #7-26084, #7-26288, #7-26315.
Stock solvent heat seal / overprint
#8605, #8610, #8611 primer, #8485.
Heatseal tapes stay with this family. See also tapes and films.
How to run heat seal
How to select heat seal coatings for lidding · How to choose heat seal characteristics from competing application technologies · How to choose the right adhesive for blister packaging market · Heat sealing – how to qualify a heat seal product · Heat seal adhesives and barrier coatings for paper · How to solve common problems with induction seal cap liners
Call 800-249-0337 for SDS, TDS, activation temperature.
Heat seal adhesive FAQ
What is heat seal adhesive?
Heat seal adhesive is coated on paper, film, nonwoven, or foil and dried. The bond forms later, when heat reactivates it, in-line or offline.
Which heat seal products does Cattie make?
Hot melt heat seals, heat seal films and tapes, water-based heat seal, and solvent-based heat seal and overprint coatings.
What are heat seal adhesives used for?

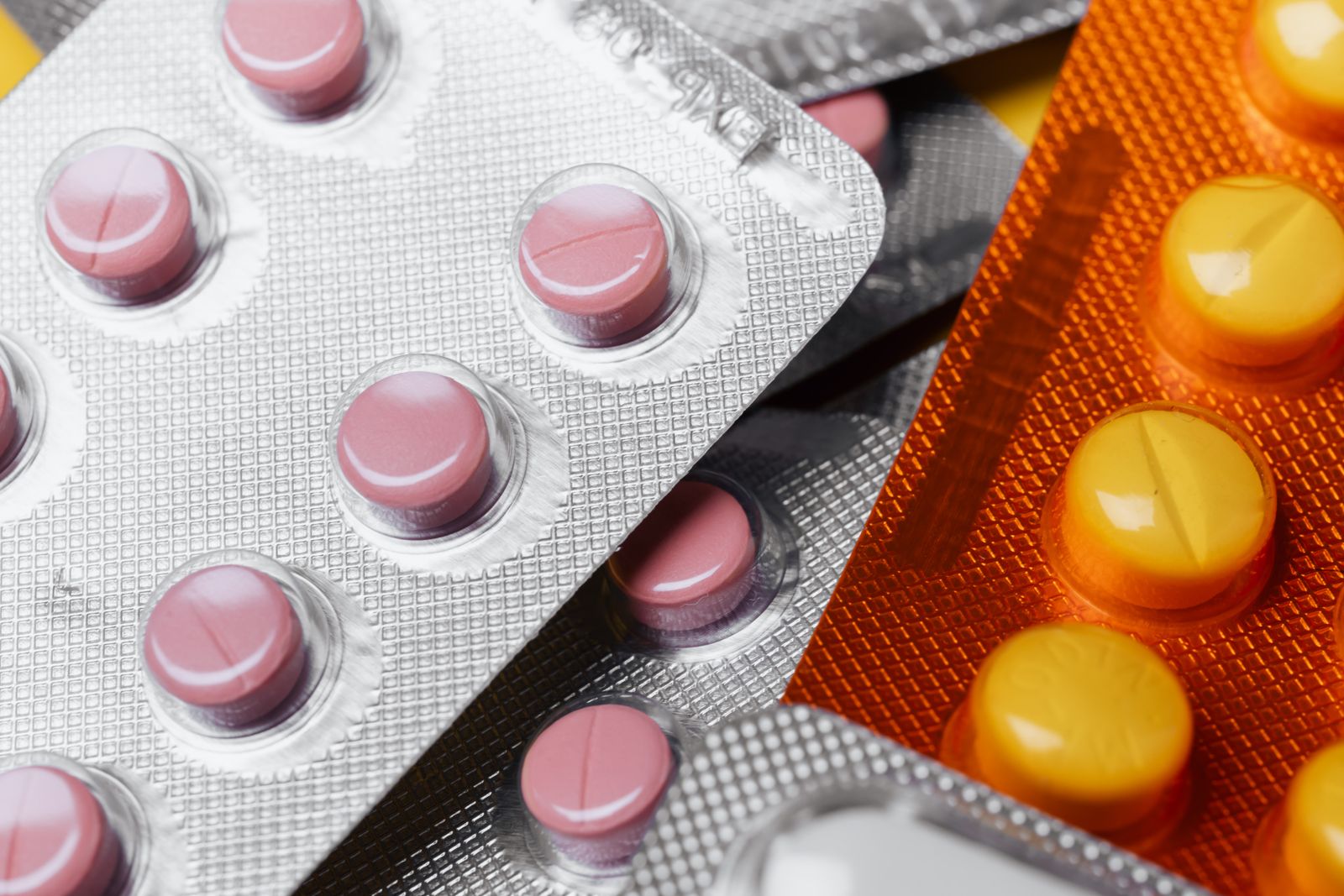

Food packaging, flexible packaging, paper converting, yogurt lidding, blister packs, and credit-card lamination.
How is heat seal adhesive applied?
By knife-over-roll, reverse roll, nip, gravure, brush, spray, or roller.
What heat seal properties can Cattie formulate?
Viscosity, solids, non-blocking, clarity, and seal temperature. Stock water-based grades cover low-heat reseal on PET and foils, non-blocking food packaging, yogurt lidding, flexible packaging, and polyester films for extrusion laminating.
Can water-based heat seal and barrier coatings replace a plastic layer on paper?
In many paper packs, yes. Water-based heat seal and barrier coatings can replace an extruded polyolefin layer, often at a lower coat weight, and avoid a multi-layer plastic stack (PE, EVOH, PET) that cannot be separated at end of life. Whether they can replace it depends on the barrier and seal your pack needs, so test your structure.
Can Cattie heat seal and barrier coatings be used in recyclable paper packaging?
Our water-based barrier coatings and paper heat seal coatings are designed for repulpable paper structures. 9169-HS, a water-based emulsion heat seal for paper packaging, passed independent lab recyclability testing in tested paper structures. Results depend on your full structure, including paper, inks, coat weight and sealing conditions, so test it on your own line before use.
What should I check on a paper heat seal and barrier structure?
Paper usually needs a double bump so the film is continuous and pin-hole free. Grade and coat weight depend on smoothness, porosity, and holdout. Cobb, dye stain, oil/grease resistance, MVTR, and OTR are the checks. Heat seals are sensitive to substrate and sealing conditions.
How do I get a heat seal match, SDS, or TDS?
Call 800-249-0337 or email sales@cattieadhesives.com. Tell us the stock you coat and the seal temperature you need, and ask for the SDS, TDS, and activation temperature. Cattie Adhesives is based in Quakertown, PA 18951.
Featured product: 9169-HS (water-based heat seal for paper packaging): typically 2.4 lbf/in bond on recycled paper to paper. Passed independent lab recyclability testing in tested paper structures. Results depend on your full structure, including paper, inks, coat weight and sealing conditions, so test it on your own line before use. We'll send a sample and help you plan the trial. Call for a sample: 800-249-0337
